Falcon 900: Landing Gear Door Bracket Cracks
February 2011
 |
Goertzen, Mark - Airframe Tech Rep - Lincoln, NE (LNK). Aviation professional since 1975. Airframes: Falcon Direct: 402.479.1511 |

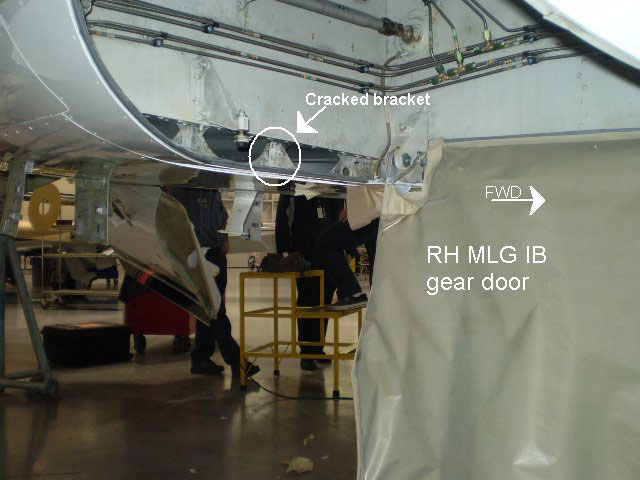

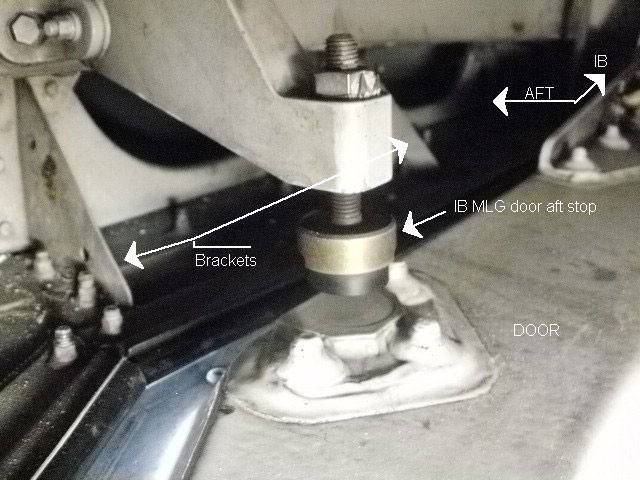

The main landing gear inboard gear door aft stationary fairing is attached with standoff brackets seen in the attached pictures. These brackets (P/N FGFB242480121A2 RH or FGFB242480111A2 LH) have a tendency to crack if the aft door rubber bumper stop is out of adjustment.
F900 AMM work card 32-115 “adjustment of the main door” paragraph 5, gives instructions on adjustment of the door aft stop.
 |
 |
