Falcon NLG Door Spring Support Bracket

December 2014

Broken Upper Support Bracket

Duncan Aviation technicians recently found the upper support bracket (FGFB212001010) in a Falcon 2000 Nose Landing Gear (NLG) wheel well to be broken. These brackets are found on the Falcon 900 and Falcon 2000 airframes and attach the LH and RH forward landing gear door springs to the NLG box structure.

We recommend you inspect the bracket for any stress corrosion and/or cracking using a mirror and flashlight.

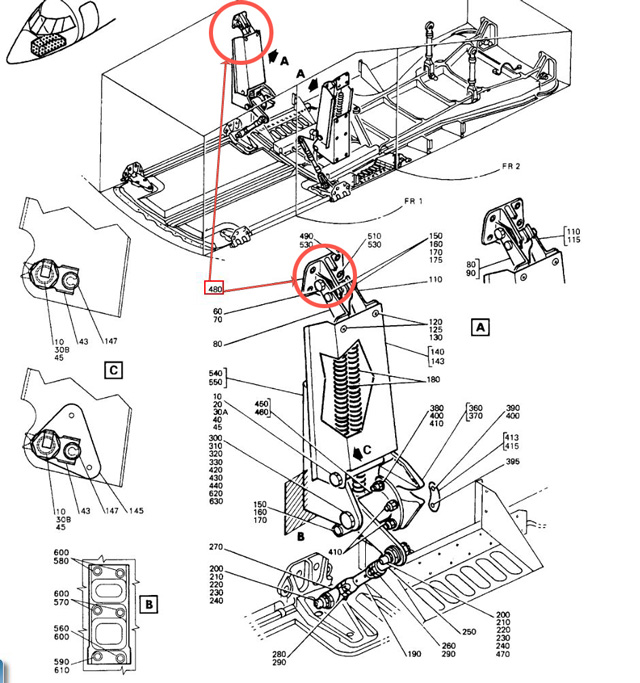

Location of bracket in NLG (click to enlarge)
